Company Overview
Royal Tech Air Filters Industry L.L.C (RAFIL) is a UAE-based manufacturer of high-quality aluminum washable air filter media for HVAC applications. Based in Umm Al Quwain, RAFIL delivers durable, efficient, and eco-friendly filtration solutions designed for residential, commercial, and industrial systems.
Application
RAFIL Aluminum Washable Air Filter Media is used in residential, commercial, and industrial HVAC systems to remove large airborne particles and coolant mist. It is ideal for outside air intake ducts, rooftop economizer hoods, and air handling units as a durable, washable pre-filter solution.
We control every stage of production to ensure purity and durability, using high-grade corrosion-resistant aluminum foil formed into a tightly crimped mesh for efficient dust capture.
Technical Details
Description: ASHRAE MERV vs. ISO 16890 RAFIL Aluminum Washable Air Filter Media High Quality Aluminum Foil Expanded Mesh with 5 Layers, 7 Layers, 9 Layers and 12 Layers.
| Feature | Specification |
|---|---|
| Maximum Operating Temperature | 200° |
| ISO 16890 | ISO Coarse |
| EN779 | G2 / G3 |
| ASHRAE 52.2 | MERV 4/5 |
| Initial Pressure Drop | 25 Pa |
| Final Pressure Drop | 250 Pa |

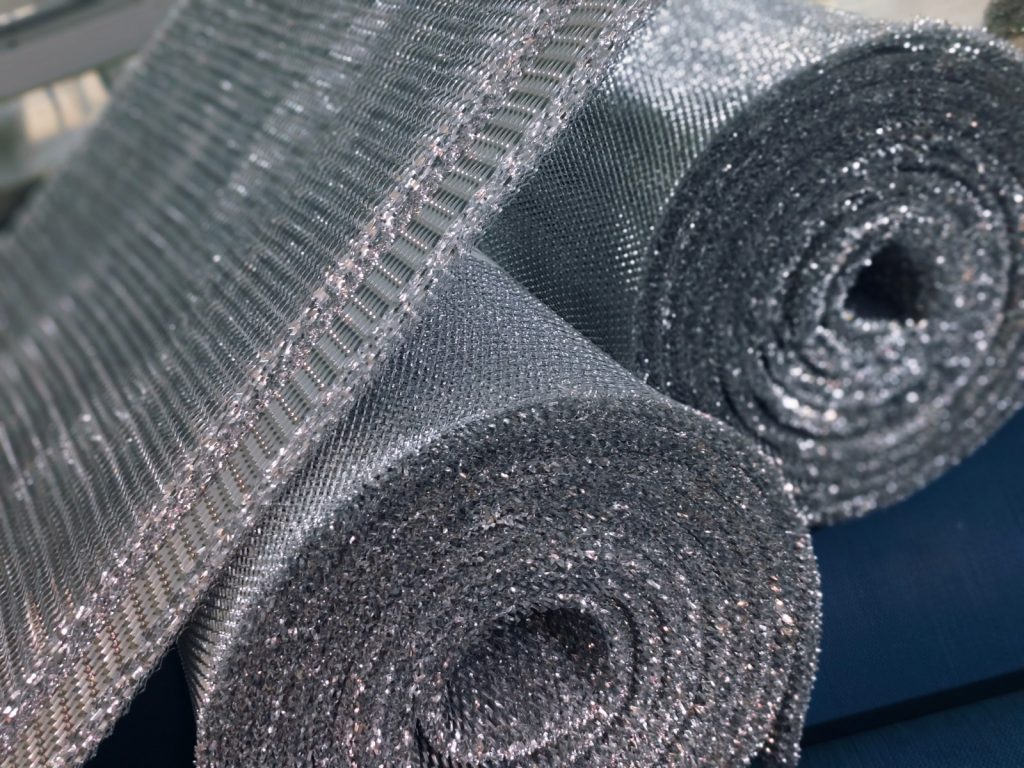

Product Range: Roll Sizes
| MODEL | SIZE IN INCHES | No. of Layers |
|---|---|---|
| RAFIL2001 | 16” W X 50ft L X 3/16” T | 5 Layers |
| RAFIL2002 | 20” W X 50ft L X 3/16” T | 5 Layers |
| RAFIL2003 | 24” W X 50ft L X 3/16” T | 5 Layers |
| RAFIL2004 | 40” W X 50ft L X 3/16” T | 5 Layers |
| RAFIL2005 | 16” W X 50ft L X 1/4” T | 7 Layers |
| RAFIL2006 | 20” W X 50ft L X 1/4” T | 7 Layers |
| RAFIL2007 | 24” W X 50ft L X 1/4” T | 7 Layers |
| RAFIL2008 | 40” W X 50ft L X 1/4” T | 7 Layers |
| RAFIL2009 | 16” W X 50ft L X 5/8” T | 9 Layers |
| RAFIL2010 | 20” W X 50ft L X 5/8” T | 9 Layers |
| RAFIL2011 | 24” W X 50ft L X 5/8” T | 9 Layers |
| RAFIL2012 | 40” W X 50ft L X 5/8” T | 9 Layers |
| RAFIL2013 | 16” W X 50ft L X 1” T | 12 Layers |
| RAFIL2014 | 20” W X 50ft L X 1” T | 12 Layers |
| RAFIL2015 | 24” W X 50ft L X 1” T | 12 Layers |
| RAFIL2016 | 40” W X 50ft L X 1” T | 12 Layers |

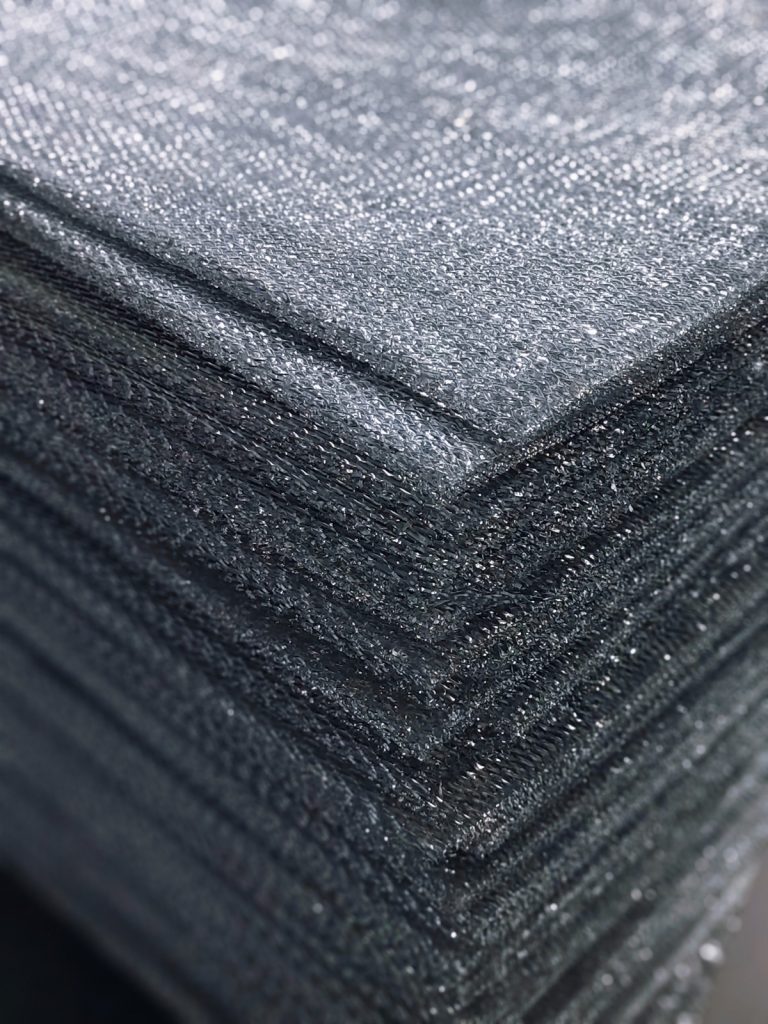

Sheet Sizes & Maintenance
| MODEL | SIZE IN INCHES | No. of Layers |
|---|---|---|
| RAFIL1001 | 40” W X 64” L X 3/16” T | 5 Layers |
| RAFIL1002 | 40” W X 64” L X 1/4” T | 7 Layers |
| RAFIL1003 | 40” W X 64” L X 5/8” T | 9 Layers |
| RAFIL1004 | 40” W X 64” L X 1” T | 12 Layers |
Filter Cleaning
Rinse the filter with a moderate to heavy stream of warm water. Chemical cleaning and high-pressure steam are not recommended.
